DIN558 EN ISO 4018 Hexagon Head Screws-Product Grade C Full Thread Class 4.8 Carbon Steel Q195 Zinc Plating

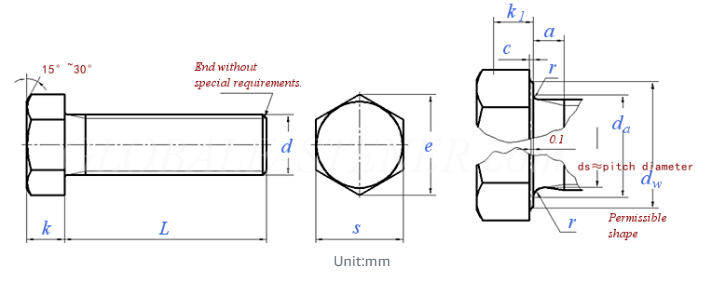

Screw Thread
d | |
| P | Pitch | | a | max | | c | max | | da | max | | dw | min | | e | min | | k | Nominal Size | | min | | max | | k1 | min | | r | min | | s | max=nominal size | | min | | | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | | 3.2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | | 6 | 7.2 | 10.2 | 12.2 | 14.7 | 18.7 | 24.4 | 28.4 | 35.4 | 42.4 | | 6.7 | 8.7 | 11.4 | 15.4 | 17.2 | 22 | 27.7 | 33.2 | 42.7 | 51.1 | | 8.63 | 10.89 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 | 39.55 | 50.85 | 60.79 | | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 10 | 12.5 | 15 | 18.7 | 22.5 | | 3.12 | 3.62 | 4.92 | 5.95 | 7.05 | 9.25 | 11.6 | 14.1 | 17.65 | 21.45 | | 3.88 | 4.38 | 5.68 | 6.85 | 7.95 | 10.75 | 13.4 | 15.9 | 19.75 | 23.55 | | 2.2 | 2.5 | 3.45 | 4.2 | 4.95 | 6.5 | 8.1 | 9.9 | 12.4 | 15 | | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.8 | 0.8 | 1 | 1 | | 8 | 10 | 13 | 17 | 19 | 24 | 30 | 36 | 46 | 55 | | 7.64 | 9.64 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | 35 | 45 | 53.8 | |
Features:
- The hexagonal head design is adopted at the head, which facilitates the loading and unloading with standard tools such as wrenches or screwdrivers.
- Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
- Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability.
- Crafted from premium materials such as carbon steel and stainless steel, these screws exhibit remarkable corrosion resistance and durability.
Advantages:
- Crafted with high-strength materials and precision manufacturing, these screws offer stable connection performance, resisting loosening or breakage.
- The hexagonal head design simplifies and expedites the installation and removal process, allowing for the use of standard tools and enhancing work efficiency.
- Possessing excellent mechanical properties with high tensile strength and yield strength, they can be used in high-load and high-stress environments.
- Designed and manufactured strictly in accordance with DIN standards, the screws have tightly controlled dimensions and tolerances, ensuring high assembly accuracy and strong interchangeability.
Application Scenarios:
- Mechanical Engineering: In the mechanical engineering field, these screws are widely used for connecting and fixing various equipment and machines, such as automobiles, aircraft, ships, and heavy machinery.
- Construction Industry: The screws are commonly employed in the construction industry for connecting and fixing steel structures, bridges, tunnels, and other projects, ensuring structural stability and safety.
- Electronic Equipment Manufacturing: They are used to secure circuit boards, chassis, enclosures, and other components in electronic devices, enhancing device stability and reliability.
- Other Industries: Additionally, these screws find applications in chemical, petroleum, power, metallurgy, and other industries for connecting and fixing various equipment and pipelines.
